Comprehensive Electromagnetic Solutions
Antenna Design
Problem Statement
1. Impedance Matching
Antennas have a characteristic impedance that can change with frequency. For efficient power transfer, the antenna's impedance must match the transmission line (usually 50 or 75 ohms). If there is a mismatch, some of the signal gets reflected instead of being transmitted, reducing efficiency and potentially harming the transmitter.
2. Size and Weight Considerations
In portable devices and specific applications, the size and weight of the antenna are important factors. A bulky or heavy antenna may not be practical.
Solution Summary
1. Impedance Matching Solutions
- Matching Networks: Components like inductors and capacitors (L-networks, Pi-networks, T-networks) are used to adjust the antenna’s impedance to the required value.
- Baluns: These are used to connect balanced antennas (e.g., dipoles) to unbalanced transmission lines (e.g., coaxial cables), ensuring proper signal transfer.
- Antenna Tuning: Adjusting the physical dimensions of the antenna (such as the length of a dipole) helps achieve resonance, improving impedance matching at the target frequency.
2. Size and Weight Considerations
- Miniaturized Antennas: Techniques like meander lines, loading coils, or metamaterials help shrink the antenna’s size while maintaining good performance.
- Planar Antennas: Printed antennas, such as patch antennas, are compact and can be easily integrated into devices.
- Dielectric Loading: Using high-permittivity materials helps reduce the antenna’s size without
Steps for Antenna Design Process
-
Defining Requirements
- Identify the specific needs of the application, such as frequency, material dielectric constant, and dimensions.
-
Conceptual Design
- Choose an appropriate antenna type that meets the requirements and fits within any constraints.
-
Simulation and Analysis
- Use simulation tools to evaluate the antenna's performance and fine-tune its design.
-
Prototyping and Testing
- Create a physical prototype and test it in a controlled setting to measure its performance.
-
Refinement and Optimization
- Tune the design based on test results to ensure it meets all desired specifications.
Key Factors in Antenna Design
Bandwidth
The range of frequencies a signal can use.
Polarization
The orientation of the electric field radiated by the antenna.
Directivity
The extent to which the antenna focuses radiation in a specific direction.
Physical Space
The size constraints for fitting the antenna in a given area.
Gain
The amount of power transmitted in the direction of maximum radiation.
Efficiency
The ratio of the power radiated by the antenna to the power supplied to it.
Advanced Antenna Design Techniques:
- Array Antennas: Use multiple antenna elements to enhance gain, direct the beam, or shape the radiation pattern for wireless communication.
- Adaptive Antennas: Automatically adjust their properties in real-time to perform optimally in varying environments.
- Metamaterial Absorbers: Leverage advanced materials to achieve innovative and unique antenna characteristics.
Applications of Antenna Design
Telecommunications Systems
Essential for mobile and fixed communications, enabling voice and data transmission over various distances.
Radar Cross-Section
Critical for radar systems in detecting and tracking objects, enhancing safety and navigation.
GPS Navigation Systems
Facilitates accurate positioning and navigation for vehicles and personal devices.
Remote Sensing for IoT Communication
Enables data collection from remote locations, enhancing IoT applications across various sectors.
Biomedical Applications
Utilized in medical devices for wireless communication and monitoring of patient health.
Automotive
Supports vehicle-to-vehicle and vehicle-to-infrastructure communication for enhanced safety.
Aerospace
Crucial for communication and navigation systems in aircraft and spacecraft.
Military Applications
Essential for secure communication, surveillance, and navigation in defense systems.
Antenna Types
A dipole antenna is a basic radio antenna made up of two symmetrical conductive elements, such as wires or rods. It is designed to transmit and receive radio waves, with its length typically matching the wavelength of the signals it processes. The feedline is connected at the center, where the electrical signal is applied or received. Dipole antennas are popular because they are simple, efficient, and widely used in wireless communication. They also serve as the foundation for many advanced antenna designs.

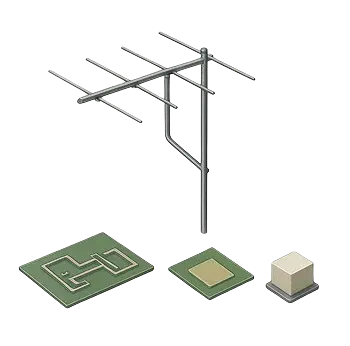

The Yagi-Uda antenna is a directional antenna commonly used for radio and TV reception. It consists of a driven element, a reflector, and multiple directors, all aligned on a boom. The reflector boosts signal strength by blocking interference from behind, while the directors focus the signal forward, increasing gain. This design helps the antenna transmit or receive signals in a specific direction, making it a simple and effective solution that has been used for many years.
A microstrip patch antenna is a compact, low-profile antenna made by etching a radiating patch onto a dielectric substrate, with a ground plane on the other side. The size of the patch determines its resonant frequency, making it useful for various wireless applications. It is easy to manufacture, cost-effective, and integrates well with planar circuits. However, it typically has a narrow bandwidth and lower gain compared to other antennas. Due to its compact size and easy integration, it is widely used in devices like mobile phones and GPS receivers.

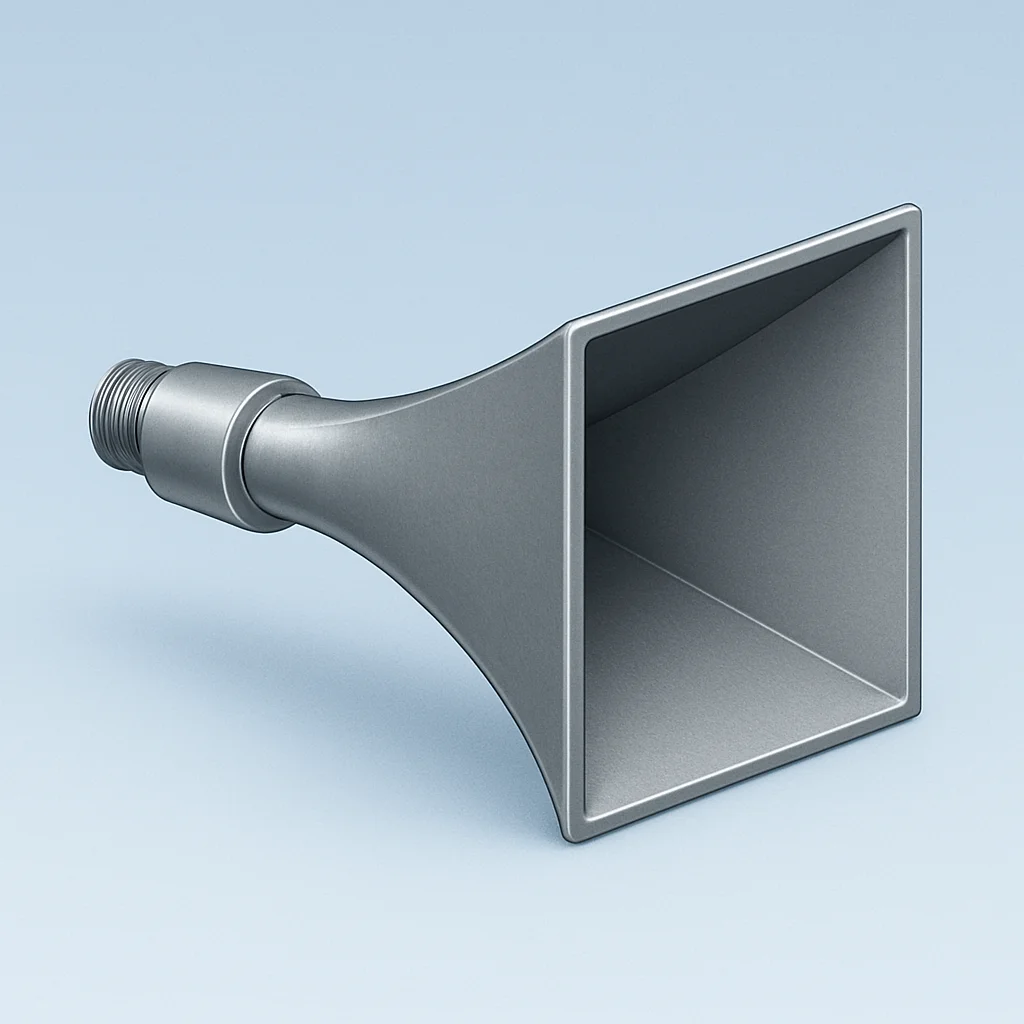

A horn antenna is a flared waveguide that efficiently focuses radio waves into a directed beam. It is commonly used for microwave frequencies, providing high gain and minimal signal loss. These antennas are often used as feed horns for larger systems like satellite dishes and radar. Their design reduces reflections and supports broadband operation. Horn antennas are popular due to their simple structure and reliable performance across various applications.
A parabolic antenna features a curved, dish-shaped reflector that focuses radio waves, allowing it to receive signals from a specific direction or transmit them in a narrow beam. It is commonly used in satellite communication, microwave relays, and radar systems. The parabolic shape directs radio waves to a focal point, improving signal strength. This design provides high gain and strong directionality, making it ideal for long-distance communication.
RF Design
Problem Statement
1. Noise and Interference
RF circuits are highly sensitive to noise from various sources (thermal noise, power supply noise, external interference).
2. Antenna Integration
Integrating antennas effectively with RF circuits while maintaining performance.
Solution Summary
1. Noise and Interference
- 1. Low-Noise Components: Selecting low-noise amplifiers (LNAs) and other components minimizes the introduction of noise into the system.
- 2. Power Supply Decoupling: Using decoupling capacitors to filter noise from the power supply.
- 3. Filtering: Employing filters to attenuate noise from specific frequency bands.
- 4. Shielding: As mentioned earlier, shielding helps to protect the circuits from external interference.
2. Antenna Integration
- Antenna Placement: Optimizing antenna placement to minimize interference and maximize signal strength.
- Matching Networks: Matching the antenna impedance to the RF circuit.
- Antenna Selection: Choosing the right antenna type for the application (e.g., patch antenna, dipole antenna).
Key Concepts in RF Design
Electromagnetic Theory
Understanding electromagnetic fields, wave propagation, and transmission lines forms the foundation of RF design.
Circuit Analysis
RF circuits require precise designs using components like inductors, capacitors, and transistors to operate effectively at high frequencies.
Component Selection
Choosing the right components, such as filters, amplifiers, and matching networks, is critical to achieving optimal system performance.
Impedance Matching
Properly matching impedance between components and transmission lines reduces signal reflections and ensures maximum power transfer.
Noise Figure
Reducing noise in RF circuits is vital, especially for sensitive receivers, as it ensures weak signals are not lost or distorted.
Linearity
Maintaining amplifier linearity is crucial for preserving signal integrity and avoiding unwanted distortion in transmitted and received signals.
Power Management
Efficient power handling ensures stability and performance, especially in high-power applications like base stations or radars.
Integration with Antennas
Seamlessly connecting RF systems with antennas ensures optimal signal transmission and reception.
Applications of RF Design
Wireless Communication
Enables mobile phones, Wi-Fi, and Bluetooth technologies for seamless connectivity.
Radar Systems
Used in air traffic control, weather monitoring, and military applications for detecting and tracking objects.
Medical Imaging
Essential in MRI and ultrasound technologies for non-invasive diagnostics and imaging.
Automotive Applications
Utilized in vehicle communication systems, radar for collision avoidance, and keyless entry systems.
Industrial Applications
Supports automation, remote monitoring, and control systems in manufacturing processes.
Smart Cities and IoT Applications
Facilitates smart meters, connected devices, and urban infrastructure management.
Defence and Security
Critical for secure communications, surveillance systems, and electronic warfare.
